Slide rules HOME page COLLECTION 10" RULES UNITED KINGDOM
Make Emblem (Technical Sales), UK (re-badged Japanese)
Model Olympic 1052
Notes

1. The word "Japan" is stamped faintly on the back. It can be just be seen on the image below. This is a common practice of rules made in one country being sold in another under a "local" brand name.
3. It is unusual in having cursor hair lines for conversion to kilowatt for both British/US (746) and European (736)  horsepower. The first was based on the energy to lift a 550 pound weight through 1 foot in one second ; the second was based on the energy to lift 75 kilograms through 1 metre in 1 second. In the image below one of the short lines is aligned with the 10 mark on the A scale and the principal line is aligned with the 736. If the other short line is aligned with the 10 then the principal line is aligned with 746.

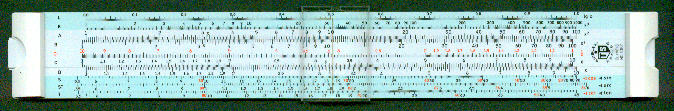

Front view
Detail - front left

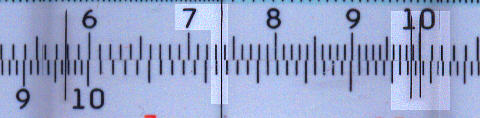

Detail - cursor hair lines
Scanned at 300 dpi
(two times larger than other detailed images)
Detail - "blind stamping"
Scanned at 600 dpi
(four times larger than other detailed images)

Manufacturing date c 1970. My estimate.
Length 10"
Material Plastic
Scales L,K,A[B,CI,C] D,S,ST,T
Gauge points p: 3.14: A,B,C1,C,D
Cursor Plastic
Hair lines p/4
Ö
(p /4)
736
746
