Make British Thornton, England
Model AD 050 Standard
Notes

1. This rule has "p-displaced" scales and an inverse scale but no trig or log-log scales- It appears therefore to have been designed to perform basic calculations (multiplication and division) as quickly as possible with minimal movement of the slide.
2. A copy of the instructions for use can be found here.

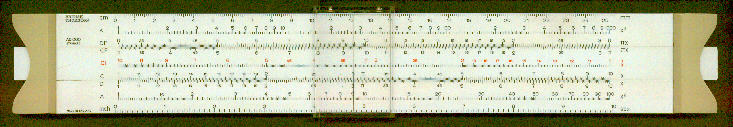

Front view

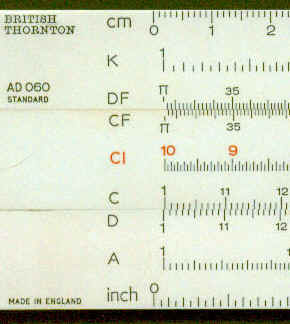

Detail - front left

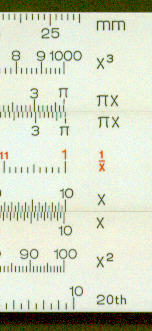

Detail - front right
Manufacturing date >1967. Year British Thornton was formed.
Length 10"
Material Plastic
Scales K,DF[ CF,CI,C]D,A
Gauge points p: 3.14: A,B,C1,C,D
s: C
m: C
Cursor Plastic
Hair lines
