Make Dargue, United Kingdom
Model Simplon - SR10 - Bilateral
Notes
1. It is interesting to compare this rule with the Simplon Major  from the same maker which tackles similar problems in very different ways.
2. This rule has scales on both faces of the stock and a reversible cursor. However if it is required to, say, include the sine of a number in other calculations it is necessary to write it down and perform the calculation using the scales on the other face.

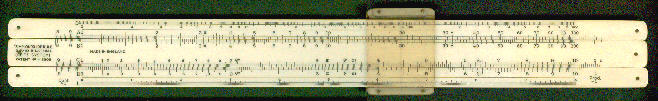

Front view

Back view

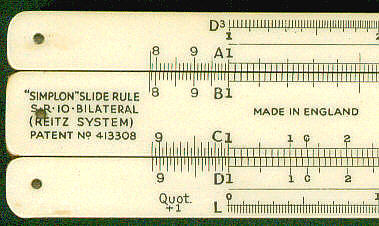

Detail - front view

Detail - back view
Manufacturing date c 1945
Length 10"
Material Plastic on wood
Scales K, A [B, C] D, L \ A,S,L,T,D
On the rule these scales are named D3, A1 [B1, C1] D1, L \ A,Sine,Log,Tan,D
Gauge points p: 3.14: A,B,C,D
r' : 3438 : C,D
r" : 206255 : C,D
c : 1.13: C,D
c': 3.57: C,D
r11: 6.37:C,D
M: 31.8: A,B
Cursor Plastic (reversible)
Hair lines
