Slide rules HOME page COLLECTION 10" RULES U.S.A.
Make Keuffel and Esser
Model Decilon 68 1100
Notes

1. The complex rule was regarded by many as the best rule produced in the US. It is a duplex rule and has 26 scales.
2. It is generally regarded as a "classic" but achieved this status by providing a full range of basic scales rather than any anything out of the ordinary.
3. Comparing it to other classics it could even be considered to lack some scales. Among other features the Pickett N3 includes more complete trig scales and the Faber Castell 2/83N has 20" scales on stock and slide and a P (Pythagorean) scale.

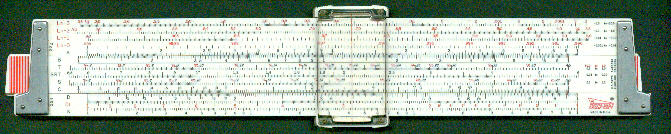

Front view

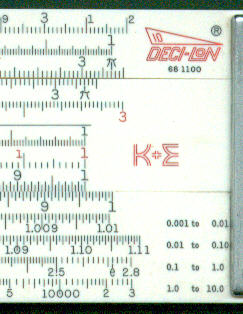

Detail - front left

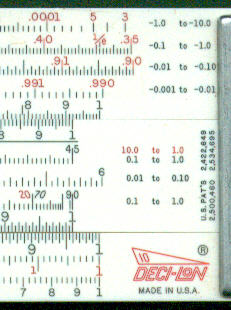

Detail - front right

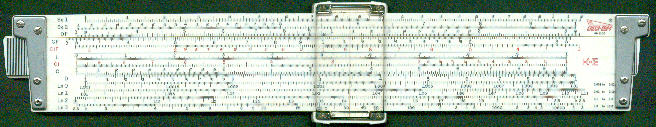

Back view

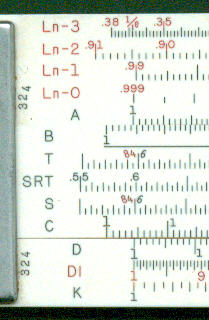

Detail - back left

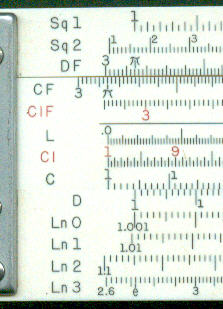

Detail - back right
Manufacturing date c 1970
Length 10"
Material Plastic, duplex
Scales Ln-3,Ln-2,Ln-1,Ln-01,A [B,T,SRT,S,C]D,DI,K
Sq1,Sq2,DF [CF,L,CI,C] D,Ln 0,Ln 1,Ln 2 Ln 3
Cursor Plastic
