Make KLPZ, Russia
Model 5161-57
Notes

1. This rule is a fairly standard Rietz rule with a normal range of scales and gauge marks.
2. Whilst the tables on the back are in Cyrillic script other markings, including "Q+1" for managing the decimal point and trig scales, are in Latin script.

Front view
Detail - front left

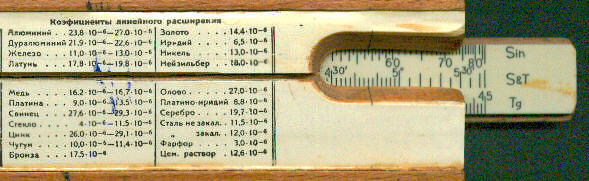

Detail - back right
Manufacturing date 1959 (printed in well of stock)
Length 10"
Material Laminated wood.
Scales K,A [B,CI,D/S,ST,T]C,L
Cursor Plastic
