Make Keuffel and Esser, USA
Model N4083-3 Log-log duplex vector
Notes

1. This is one of the rare rules to have hyperbolic functions (sinh and tanh).
2. On a "normal" rule these can be calculated using the log-log scales by the following relationships:

    Sinh x= (ex - e-x) / 2
    Cosh x = (ex + e-x) / 2
    Tanh x= (ex - e-x) / (ex + e-x) = Sinh x / Cosh x

Clearly where there is a need for these functions special scales can both minimise the amount of calculation and reduce the chance of errors.

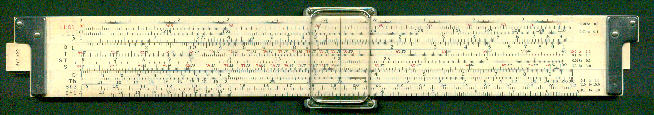

Front view
Detail - front left
Detail - front right

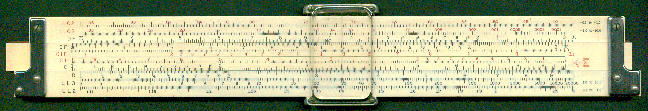

Back view
Detail - back left
Detail - back right
Manufacturing date c 1950
Length 10"
Material Plastic, duplex
Scales L,LL01,LL1,A [B,T,ST,T]D,Th,Sh2,Sh2
LL02,LL03,DF[CF,CIF,C]D,LL3,LL2
Cursor Plastic end pieces, metal frame, glass cursor.
