1. This rule represents an admirable attempt to produce a high
degree of functionality in a relatively inexpensive format.
2. The rule is physically the same as the simplex Microline 120.
LL02, LL03, DF [CF, CIF, L, CI, C]D,LL2, LL3
| Slide rules HOME page | COLLECTION | 10" RULES | U.S.A. |
| Make | Pickett, USA |
| Model | Microline 140 |
| Notes 1. This rule represents an admirable attempt to produce a high
degree of functionality in a relatively inexpensive format. |
|

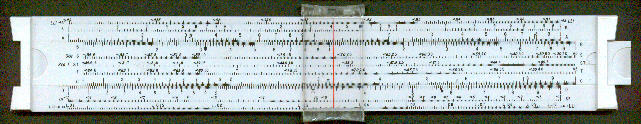

| Front view |
|

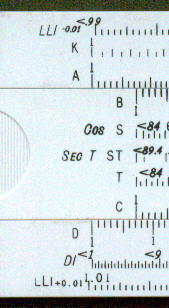

| Detail - front left |

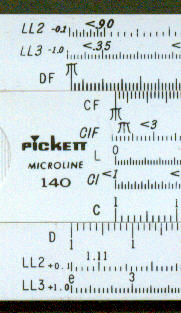

Detail - front right |

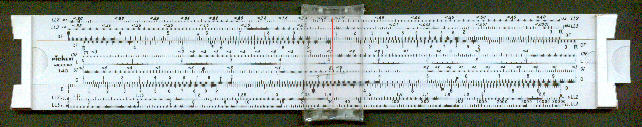

| Back view |
|

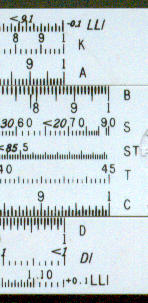

| Detail - back left |

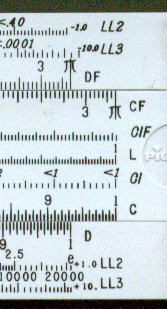

Detail - back right |
| Manufacturing date | c 1965 (my guess) |
| Length | 10" |
| Material | Plastic |
| Scales | LL01, K, A [B, S, ST, T, C] D, DI, LL1 LL02, LL03, DF [CF, CIF, L, CI, C]D,LL2, LL3 |
| Cursor | Plastic |
| Hair lines | None |
| Documentation | None |
| Condition | Good condition. |
