Make Blundell Harling, UK
Model Super Duplex - A506
Notes

1. This is one of the few rules from the UK to have hyperbolic log scales.
2. As with other hyperbolic rules I have seen sinh is covered by two scales, 0.1 to 0.9 and 0.9 to 3.0. Tanh is covered by one scale from .1 to 3. The value of x is entered on the appropriate scale and the value of the function is read on the D scale. This range is common as below 0.1, sinhx » x , and above 3.0, sinh »  ex . Similarly below 0.1, tanh x » x and above 3.0,  tanh x » 1.
3. The rule has a full complement of folded scales (DF, CF etc) and inverse scales including the rather uncommon DI.

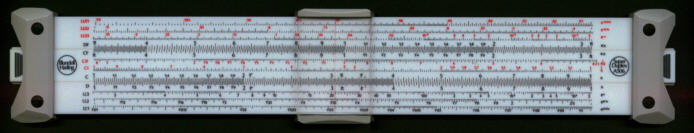

Front view

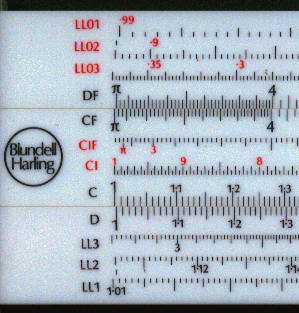

Detail - front left

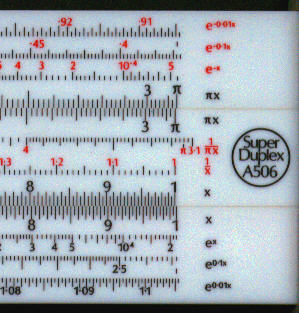

Detail - front right
Back view

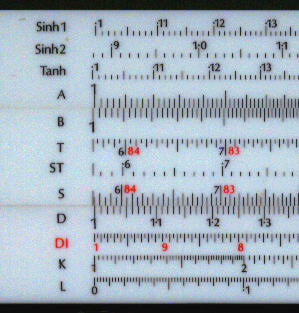

Detail - back left

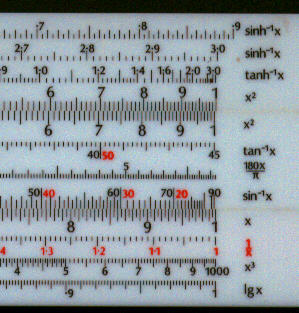

Detail - back right
Manufacturing date c 1970
Length 10"
Material Plastic
Scales LL01, LL02, LL03, DF [CF, CIF, CI, C] D, LL3, LL2, LL1
Sinh1, Sinh2, Tanh, A [B, T, ST, S] D, DI, K, L
Cursor Plastic - three hair lines
