Make Logarex, Czechoslovakia
Model 27403-II Darmstadt
Notes

1. This rule is made of a very white plastic with very black markings. The plastic is rather heavy and has a different feel to other plastic rulers I have come across.
2. On the top edge it has a centimetre scale but on the lower edge it has a 1:25 scale.
3. There are no marking on the back. Whether this was originally the case I don't know but there is no sign of glue or anything to hold paper.
4. The rule is described as "System Darmstadt". This might have been an attempt to appeal to the German market (Czechoslovakia shared a common border with Germany). On the other hand this particular rule was purchased in a flea-market in Kiev, Ukraine.

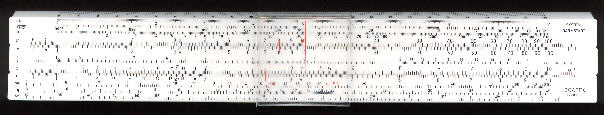

Front view

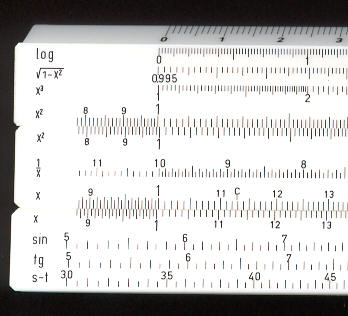

Detail -  front left

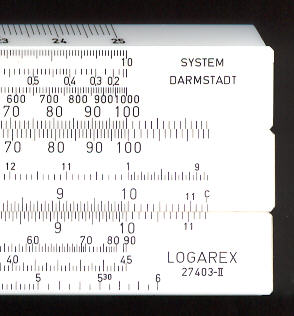

Detail -  front right

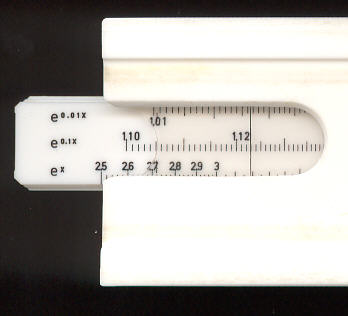

Detail - left back
Detail - left
Detail - right
Detail - left back
Manufacturing dates 1970 - guess
Length 10"
Material Plastic
Scales L, P, K, A [B, CI, C /LL01, LL1, LL2] D, S, T, ST
Cursor Plastic.
Hair lines From the upper left hairlines to the central one Ö p/4
From the lower right to the lower left hair line 736. (The conversion from HP to kW.)
