Make Faber Castell, Germany
Model 4/60/380
Notes

1. Rules of this size (20" = 50 cm) were designed for increased accuracy.
2. The rule has a very basic set of scales.
3. There are windows on the back with hair lines on the stock for sin and tan (left) and log (right). The sine scale goes from 35' to 90° and the tan scale from 35' to 45°.

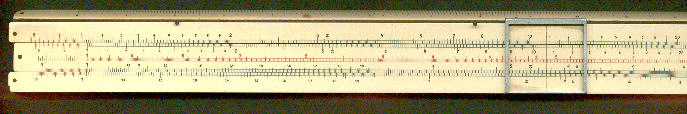

Front view - left

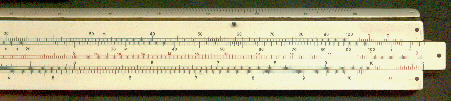

Front view - right

Detail - front view

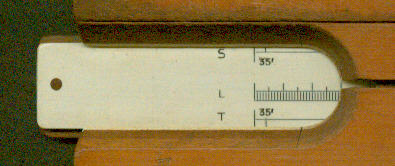

Detail - back left
Manufacturing date May, 1937 (stamped on back)
Length 20"
Material Plastic on wood
Scales A, [B, CI, C/ S, L, T] D
Gauge points p: 3.14: A,B,C,D
r' : 3438 : C,D
r" : 206255 : C,D
M: 31.8: A,B
Cursor Glass with aluminium frame
Hair lines
Documentation None
Condition Good
