Make Faber Castell, Germany
Model 62/83 N Novo Duplex
Notes

1. This is the rarer 5" version of the famous 2/83N.  It is a duplex rule with 30 scales.
2. On the front face there are 15 scales.
3. On the rear face there are another 15 scales.
4. Other features include:

  • A second tan scale covering the range 41 to 85
  • Indication of correction to be applied to common D and LL0 scale
  • Use of W scales which give the accuracy of 10" scales on a 5" rule
  • Four log-log and four inverse log-log scales

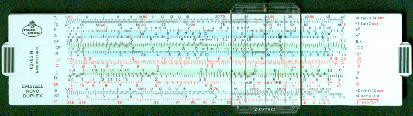

Front view

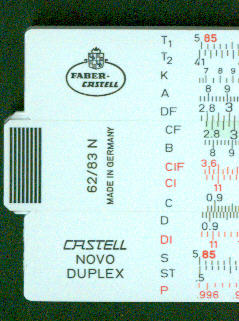

Detail - front left

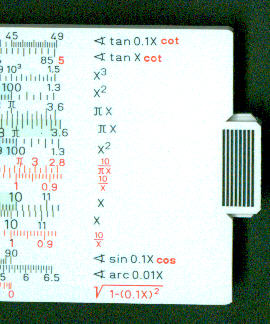

Detail -front right

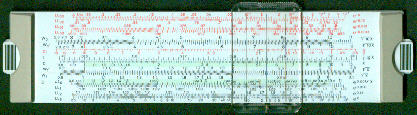

Back view

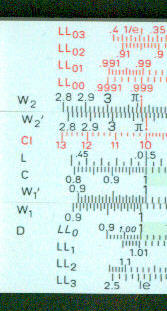

Detail -back left

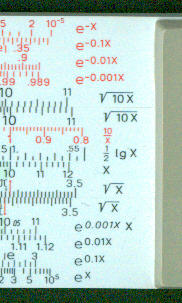

Detail - back right
Manufacturing date 1974
Length 5"
Material Plastic
Scales T1,T2,K,A,DF[CF,B,CIF,CI,C]D,DI,S,ST,P
LL03,LL02,LL01,LL00,W2[W2',CI,L,C,W1']W1,D&LL0,LL1,LL2,LL3
Cursor Plastic
Hair lines Multiple hair-lines both faces.
Documentation Complete original documentation
Condition Mint but some slight leaching of the red dye into the plastic.
