Make Concise, Japan
Model No 300B
Notes

1. This rule has independently rotating pairs of disks on the front and back faces. In both case scales from C inward toward the centre rotate with respect to the scales from D outward.
2. The names of the scales are marked on the cursor on both faces. This feature is useful as it is more difficult to know which scale you should be using on a circular than on a straight slide rule.
3. The rule has an extensive range of trig scales, but does not have a gauge mark for very small angles.
4. The cursor has a hair mark for Ö (4/p).

Front view
Detail - front view
Back view

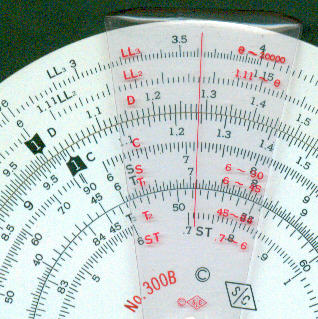

Detail - back view
Manufacturing date c 1970 (my guess)
Length Circular
Material Plastic
Scales K, A, D, C, DI, B, L
LL3, LL2, D, C, S, T1 , T2, ST
Cursor Plastic
Hair lines Ö (4/p)
Documentation Complete
Condition Very good, including plastic case
