Slide rules HOME page COLLECTION 10" RULES GERMANY
Make Veb Mantissa, Germany (former East Germany)
Model Darmstadt II
Notes

1. This rule was made in former Eastern Germany.
2. It has its log-log scales on the slide rather than the stock. The D scale is reproduced on the back of the rule to allow for this. It is not the only rule like that but it is comparatively rare.
3. Compared to most rules I have seen the colour arrangement seems a bit garish - but that is just a matter of taste.

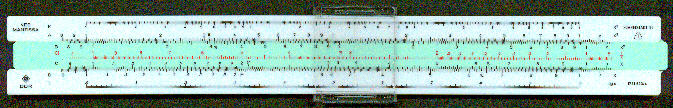

Front view

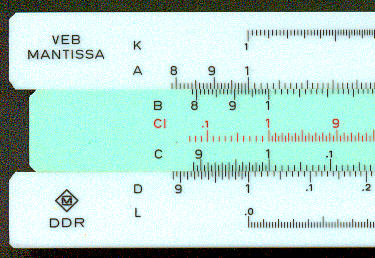

Detail - front left

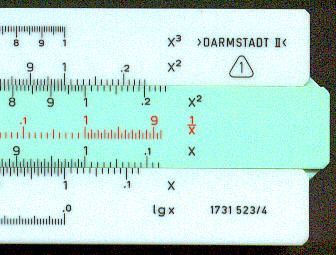

Detail - front right

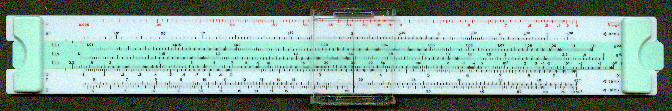

Back view
Detail - back left
Detail - back right
Manufacturing date c 1975
Length 10"
Material Plastic
Scales K, A [B, CI, C ] D, L
P, ST [LL1, LL2, LL3] D, T, S
Cursor Multi-line
